RB3 PS3/Wii Keyboard USB to MIDI Software

This program aims to emulate the Rock Band Keyboard’s native MIDI mode using the USB interface so that it may be used wirelessly and without a MIDI cable. Reddit page that lead to this.

Downloads and source code at: http://jasonharley2o.com/files/rb3usb/keyboard/

See also:

  • RB3M-USB2MIDI for this program adjusted for Mustang guitar.
  • RB3KB-USB2PSKB for translating RB Keyboard to (PC) keyboard for Phase Shift.

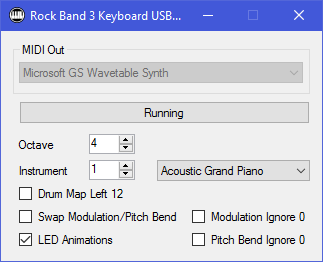

Screenshot

Requires

  • Windows with .NET 4.5 Framework,
  • LibUSB filter driver, e.g. wizard from LibUsbDotNet,
  • A virtual MIDI device, e.g. loopMIDI.

If you want to compile it yourself you’ll need LibUsbDotNet and midi-dot-net - the packages on NuGet will do.

Usage

Install the LibUSB filter driver on your keyboard, keep in mind this is per USB port.

  • PS3: “vid: 12ba pid:2330”
  • Wii: “vid: 1bad pid:3330”

With a virtual MIDI device program running, run RB3KB-USB2MIDI, select your virtual device and click “Doing Nothing” to run.

Current Features from Native

  • All 25 keys with velocity (although the implementation //may// be incorrect).
  • Changing octave/program using the top four buttons, or from the GUI.
  • All Notes Off panic (Select/Home/Start together).
  • Slider touch strip controlling Modulation and Pitch Bend (with overdrive button held down).
  • LED animations (may break PS3 keyboards).
  • Drum map the left 12 keys by pressing Up on the D-Pad, or from the GUI.
  • Pedal for Sustain

Extended Features

  • Press Down on the D-Pad to swap Modulation/Pitch Bend, or from the GUI.
  • Press Left to reset Pitch Bend.
  • Press Right to reset Modulation.
  • Option to ignore the keyboard’s 0 value for Modulation and Pitch Bend (i.e. disables the auto-reset).

Missing Features from Native

  • The other pedal modes (expression and volume), the RB1 pedal does not work for these so I can’t test what the raw data looks like.
  • The Select/Home/Start buttons being able to control some programs.

Bugs

  • Toggling Drum Mapping from the GUI won’t change the LED even with Animations enabled.
  • The program will randomly crash when the keyboard is turned off or asleep (unconfirmed).
  • Changing octave/program using the GUI is unreliable.
  • Not really a bug, but RB3M-USB2MIDI is a separate program for the Mustang Pro Guitar, and doesn’t support MIDI-Pro Adapter for either Keyboard or Guitar (but something I could do).
